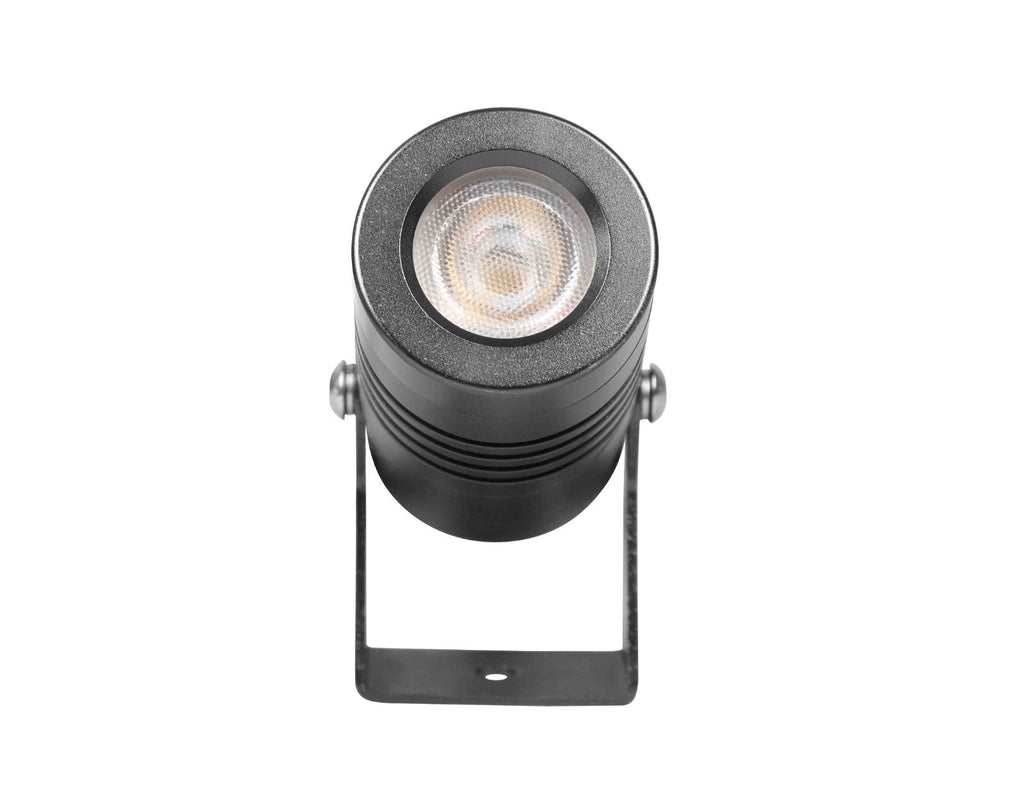

Illuminate FX SpectraCore 5W RGB Spot Light

The iLuminateFX SpectraCore is a professional-grade architectural fixture engineered for high-impact color output and precision beam control in both indoor and outdoor environments. Powered by a 5W RGB 3-in-1 COB LED, this compact spotlight delivers vivid, uniform color mixing with excellent optical efficiency and strong center intensity.

Constructed from solid CNC-machined aluminum and fully sealed to an IP67 waterproof rating, the SpectraCore is built to withstand harsh weather conditions while maintaining long-term performance and reliability.

Designed for DC 12V low-voltage operation, this fixture is fully compatible with 12–24V DMX decoders as well as standard RGB controllers, allowing seamless integration into professional DMX systems or standalone lighting setups.

Key Features

• Precision RGB output using a 5W RGB 3-in-1 COB LED

• Compatible with 12–24V DMX decoders and simple RGB controllers

• 23° beam angle for controlled, focused lighting designs

• Produces a uniform beam with clean color mixing and strong center intensity

• DC 12V low-voltage input for safe professional installations

• Fully sealed IP67-rated construction for complete weather and water resistance

• IK04 impact-rated housing for added durability

• Solid, passivated (anodized) CNC-machined aluminum body for superior heat dissipation

• Slim cylindrical form factor measuring Ø44 mm × 80 mm

• Low-voltage constant current operation (external transformer required)

• Supplied with 1.5 m rubber power cable

• 2 mm tempered glass lens with silicone O-ring sealing

• Designed for continuous outdoor use with a 3-year warranty

• CE and RoHS compliant
